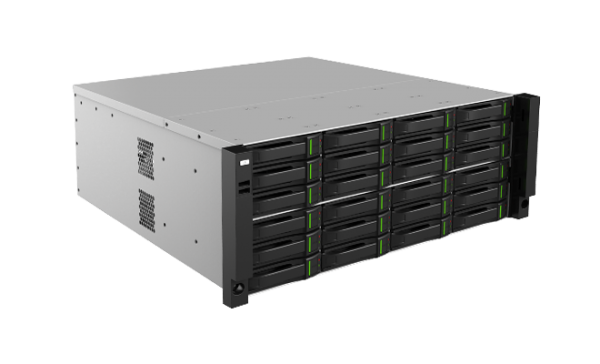

TC-NR5320M7-E24
Mã sản phẩm: TC-NR5320M7-E24
• Recording resolution 12MP/4K/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/
CIF/QCIF IP Camera Input
• Up to 12MP Resolution Recording
• Bandwidth in/out 1280Mbps/640Mbps
• JBOD,RAID0,RAID1,RAID5,RAID6,RAID10，RAID50, RAID60 (>0℃, Each Raid Group Supports up to 100Mbps Input)
• HDD Quota and Group Management
• 4X 100/1000Mbps Self-adaptive Ethernet Interfaces,4 1000Mbps optical port
• Support 320-ch Intelligent Analysis Process
• Smart Search&Recording, Plug&Play
• Support ANR Funtion
• Support N+M Hot Standby Function
• 2x HDMI, 1x VGA, Diffierent Video Source, Max Resolution 4K
• 24 SATA, Alarm I/O 8 plus36 switch value /4 plus 18 switch value, Audio I/O 1/1, 4x USB,10x RS-485, 1x RS-232
• 1+1 redundent power
• CE, FCC
Giá: Liên hệ
 |
Chi tiết sản phẩm
| Video/Audio Input | |
| Video Input | 320-ch |
| Audio Input | 1-ch, 3.5mm |
| Network | |
| Incoming Bandwidth | 1280Mbps |
| Outgoing Bandwidth | 640Mbps |
| Mobile Software | P2P&DDNS for IOS&Android |
| Internet Protocol | TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/FTP/NTP/HTTPS/RTSP/SMTP/HTTPS/SADP/SNMP |
| Activated by Alarm | |
| ANR | Y, Auto download video from camera SD card, Which was stored when disconnnection (Only Support Tiandy ANR IP Camera) |
| Advanced | Remaining Bandwidth Display, Flow Monitor, Capture Package |
| Video/Audio Output | |
| HDMI Output | 2-ch Resolution：4096*2160，3840×2160 ，2560×1600，1600×1200，3840×2160,2560×1600，2560×1440，1920×1080，1280×720， 800×600,1024×768,1366×768,1440×900,1280×800 |
| VGA Output | 1-ch Resolution: 1920×1080，1600x1200, 1280x1024, 1280×720，800×600,1024×768，1366×768,1440×900,1280×800 Adjustable Output mode, Self-adaptive Resolution |
| I-Frame Record | Y, Only Record Key Frame to Lower Frame Rate |
| Recording Resolution | 12MP/4K(3840*2160,3264*2448,3296*2472)/6MP(2752*2208,3008*2008,2408*2008)/5MP(2560*1920,2592*1944,2592*1920,2528*2128/4MP(2560*1440,2592*1520)/3MP(2048*1536)/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output | 1-ch 3.5mm |
| Synchronous Playback | 16-ch 4CIF/16-ch 720P/16-ch 1080P/5-ch 4K/3-ch 12MP |
| Decoding | |
| Live View/Playback | 12MP/4K/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability | 3-ch 12MP/5-ch 4K/20-ch 1080P/40-ch 720P/80-ch 4CIF |
| Display Split | 1/3/4/6/8/9/10/13/16/20/25/32/36/40/64 |
| E-Zoom | Y |
| Hard Disk | |
| SATA | 24 SATA for 24 HDDs (Hot Swap) |
| eSATA | Y, Only for Backup |
| Capacity | Up to 10TB Capacity for Each HDD |
| NTFS Files System | Y |
| HDD Management | Group and Quota,Customized Recording Days |
| RAID | |
| RAID Mode | JBOD,RAID0,RAID1,RAID5,RAID6,RAID10，RAID50, RAID60 (>0℃, Each Raid Group Supports up to 100Mbps Input) |
| Hot Backup Disk | Overall and Raid Hot Backup Disk |
| RAID Management | One-key Configuration, and Support Manual and Auto Rebuild |
| Redundant Recording | Y, Support 200Mbps Input |
| External Interface | |
| Network Interface | 4 100/1000Mbps Self-adaptive Ethernet Interfaces,4 1000Mbps optical port |
| Serial Interface | 10 x RS-485, 1 x RS-232 |
| USB Interface | 2x USB3.0, 2x USB2.0 |
| Alarm In/Out | 8 plus36 switch value /4 plus 18 switch value(extended board) |
| Advance | |
| NAS | NFS Protocol, Support Manual Backup Only |
| Plug and Play | Y, Only for Tiandy Cameras |
| Image Flip | Y, Only for Tiandy Cameras |
| Hot Standby | N+M |
| Corridor Mode | Y, 16:9 to 9:16, Only for Tiandy Cameras |
| Video Analytics(VCA) | Tripwire/Double Tripwire/Perimeter/Object Abandon/Object Lost/Running/Loitering/Parking/Early Warning/Crowd/Face Detection/People Counting/Audio Abnormal Detection/Video Abnormal Detection/On duty Detection/intelligenct tracking |
| Smart Search | Quickly Search Target Videos according to Channel No., Records Type, Records Time, File Type and VCA( Only for Tiandy Cameras ) |
| Trigger Recording | Manual/Timing/Motion Detection/Port Alarm/VCA/Video Occlusion |
| Smart Recording | Set Different Recording Bite Rate for Different Time |
| Alarm Recording | Pre Alarm Default 10s ( 5/10/15/60s Optional) , Post Alarm Default 10s (10/15/30/60/600s Optional ). |
| One Key Control | Intercom, Recording |
| Records Format | SDV, Export MP4 in H.264 Format |
| Records Encryption | Y |
| Records Tag | Y |
| Onvif | Onvif(Profile S) |
| General | |
| Languge | English,Spanish,Korean,Italian,Turkish,Thai,Russian,Polish |
| French,Traditional Chinese,Simplified Chinese,Dutch, Hebrew（UI） | |
| Power Supply | 100 ~ 240V AC, 50 ~ 60Hz,1+1 redundent power |
| Consumption(without HDD) | Max 610w,Average 650w |
| Working Temperature | 0℃～50℃ |
| Working Humidity | 10 % ~ 90 % |
| Chassis | 4U |
| Dimensions | 542mm×446.6mm×173.8mm |
| Weight | 25Kg (without HDD) |
