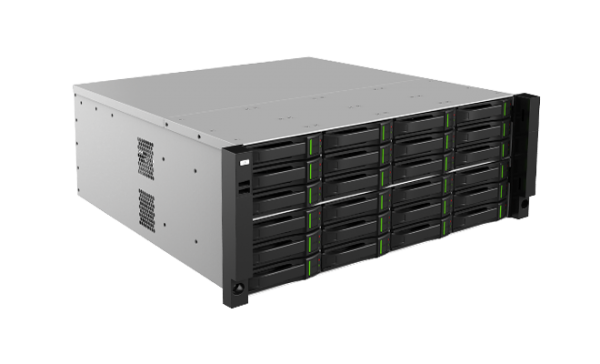

TC-NR5160M7-E24-C
TC-NR5160M7-E24-C
Mã sản phẩm: TC-NR5160M7-E24-C

• Recording resolution 12MP/4K/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/
CIF/QCIF IP Camera Input
• Up to 12MP Resolution Recording
• Bandwidth in/out 960Mbps/480Mbps
• JBOD,RAID0,RAID1,RAID5,RAID6,RAID10,RAID50, RAID60
• HDD Quota and Group Management
• 4X 100/1000Mbps Self-adaptive Ethernet Interfaces,4 1000Mbps optical port
• Support 160-ch Intelligent Analysis Process
• Smart Search&Recording, Plug&Play
• Support ANR Funtion
• Support N+M Hot Standby Function
• 2x HDMI, 1x VGA, Diffierent Video Source, Max Resolution 4K
• 24 SATA, Alarm I/O 8 /4, Audio I/O 1/1,  4x USB,2x RS-485,  1x RS-232
• CE, FCC

Giá: Liên hệ

Chi tiết sản phẩm

Video/Audio Input
Video Input 160-ch
Audio Input 1-ch, 3.5mm
Network
Incoming Bandwidth 960Mbps
Outgoing Bandwidth 480Mbps
Mobile Software P2P&DDNS for IOS&Android
Internet Protocol TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/FTP/NTP/HTTPS/RTSP/SMTP/HTTPS/SADP/SNMP
Email Activated by Alarm
ANR Y, Auto download video from camera SD card, Which was stored when disconnnection (Only Support Tiandy ANR IP Camera)
Advanced Remaining Bandwidth Display, Flow Monitor, Capture Package
Video/Audio Output
HDMI Output 2-ch Resolution:4096*2160,3840×2160 ,2560×1600,1600×1200,3840×2160,2560×1600,2560×1440,1920×1080,1280×720, 800×600,1024×768,1366×768,1440×900,1280×800
VGA Output 1-ch Resolution: 1920×1080,1600x1200, 1280x1024, 1280×720,800×600,1024×768,1366×768,1440×900,1280×800       Adjustable Output mode, Self-adaptive Resolution
I-Frame Record Y, Only Record Key Frame to Lower Frame Rate
Recording Resolution 12MP/4K(3840*2160,3264*2448,3296*2472)/6MP(2752*2208,3008*2008,2408*2008)/5MP(2560*1920,2592*1944,2592*1920,2528*2128/4MP(2560*1440,2592*1520)/3MP(2048*1536)/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output 1-ch 3.5mm
Synchronous Playback 16-ch 4CIF/16-ch 720P/16-ch 1080P/5-ch 4K/3-ch 12MP
Decoding
Live View/Playback 12MP/4K/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 3-ch 12MP/5-ch 4K/20-ch 1080P/40-ch 720P/80-ch 4CIF
Display Split 1/3/4/6/8/9/10/13/16/20/25/32/36/40/64
E-Zoom Y
Hard Disk
SATA 24 SATA for 24 HDDs (Hot Swap)
eSATA Y, Only for Backup
Capacity Up to 10TB Capacity for Each HDD
NTFS Files System Y
HDD Management Group and Quota,Customized Recording Days
RAID
RAID Mode JBOD,RAID0,RAID1,RAID5,RAID6,RAID10,RAID50, RAID60
Hot Backup Disk Overall and Raid Hot Backup Disk
RAID Management One-key Configuration, and Support Manual and Auto Rebuild
Redundant Recording Y, Support 200Mbps Input
External Interface
Network Interface 4 100/1000Mbps Self-adaptive Ethernet Interfaces,4 1000Mbps optical port
Serial Interface 2 x RS-485, 1 x RS-232
USB Interface 2x USB3.0, 2x USB2.0
Alarm In/Out 8 /4
Advance
NAS NFS Protocol, Support Manual Backup Only
Plug and Play Y, Only for Tiandy Cameras
Image Flip Y, Only for Tiandy Cameras
Hot Standby N+M
Corridor Mode Y, 16:9 to 9:16, Only for Tiandy Cameras
Video Analytics(VCA) Tripwire/Double Tripwire/Perimeter/Object Abandon/Object Lost/Running/Loitering/Parking/Early Warning/Crowd/Face Detection/People Counting/Audio Abnormal Detection/Video Abnormal Detection/On duty Detection/intelligenct tracking
Smart Search Quickly Search Target Videos according to Channel No., Records Type, Records Time, File Type and VCA( Only for Tiandy Cameras )
Trigger Recording Manual/Timing/Motion Detection/Port Alarm/VCA/Video Occlusion
Smart Recording Set Different Recording Bite Rate for Different Time
Alarm Recording Pre Alarm Default 10s ( 5/10/15/60s Optional) , Post Alarm Default 10s (10/15/30/60/600s Optional ).
One Key Control Intercom, Recording
Records Format SDV, Export MP4 in H.264 Format
Records Encryption Y
Records Tag Y
Onvif Onvif(Profile S)
General
Languge English,Spanish,Korean,Italian,Turkish,Thai,Russian,Polish
French,Traditional Chinese,Simplified Chinese,Dutch, Hebrew(UI)
Power Supply 100 ~ 240V AC,  50 ~ 60Hz
Consumption(without HDD) Max 610w,Average 650w
Working Temperature 0℃~50℃
Working Humidity 10 % ~ 90 %
Chassis 4U
Dimensions 542mm×446.6mm×173.8mm
Weight 25Kg (without HDD)
