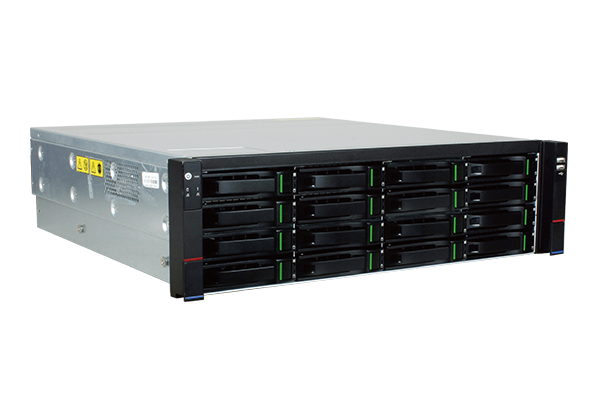

TC-NR5080M7-E16
Mã sản phẩm: TC-NR5080M7-E16
• 160-ch IP Camera Input
• 2-ch 12MP/ 4-ch 4K/16-ch 1080P/32-ch 720P/64-ch 4CIF Realtime Display
• 64-ch Sub-stream 4CIF Realtime Display
• 2-ch 12MP/4-ch 4K/16-ch 1080P/720P/4CIF Sync Playback
• Up to 12MP Resolution Recording
• Bandwidth in/out 400Mbps/200Mbps
• Support JBOD, RAID0/1/5/6/10
• HDD Quota and Group Management
• Dual Gigabit Network Interfaces
• Support 160-ch Intelligent Analysis Process
• Smart Search&Recording, Plug&Play
• Support ANR Funtion
• Support N+M Hot Standby Function
• 2x HDMI, 2x VGA, Diffierent Video Source, Max Resolution 4K
• 16 SATA(Up to 128TB), Alarm I/O 16/4, Audio I/O 1/2, 3x USB
• CE, FCC
Giá: Liên hệ
 |
Chi tiết sản phẩm
| Specification | |
| Video/Audio Input | |
| Video Input | 160-ch |
| Audio Input | 1-ch, 3.5mm |
| Network | |
| Incoming Bandwidth | 400Mbps |
| Outgoing Bandwidth | 200Mbps |
| Remote Connection | 32 Users, Up to 160ch Videos |
| Browser | IE8,IE9,IE10,IE11,Firefox24 |
| Mobile Software | P2P&DDNS for IOS&Android (Tiandy: Easylive, Neutral: Mobilelive) |
| Internet Protocol | TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/FTP/NTP/HTTPS/RTSP/SMTP/HTTPS/SADP/SNMP |
| Activated by Alarm | |
| ANR | Y, Auto download video from camera SD card, Which was stored when disconnnection (Only Support Tiandy ANR IP Camera) |
| Advanced | Remaining Bandwidth Display, Flow Monitor, Capture Package |
| Video/Audio Output | |
| HDMI Output | 2-ch Resolution:3840×2160,2560×1600，2560×1440，1920×1080，1280×720， 800×600,1024×768,1366×768,1440×900,1280×800 |
| VGA Output | 2-ch Resolution: 1920×1080，1280×720，800×600,1024×768，1366×768,1440×900,1280×800 Adjustable Output mode, Self-adaptive Resolution |
| I-Frame Record | Y, Only Record Key Frame to Lower Frame Rate |
| Recording Resolution | 12MP/4K(3840*2160,3264*2448,3296*2472)/6MP(2752*2208,3008*2008,2408*2008)/5MP(2560*1920,2592*1944,2592*1920,2528*2128/4MP(2560*1440,2592*1520)/3MP(2048*1536)/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output | 2-ch, 1-ch BNC(Linear Electrical Level, 600Ω) ,1-ch 3.5mm |
| Synchronous Playback | 2-ch 12MP/4-ch 4K/6MP/5-ch 5MP/8-ch 4MP/9-ch 3MP/16-ch 1080P/720P/4CIF |
| Decoding | |
| Live View/Playback | 12MP/4K(3840*2160,3264*2448,3296*2472)/6MP(2752*2208,3008*2008,2408*2008)/5MP(2560*1920,2592*1944,2592*1920,2528*2128/4MP(2560*1440,2592*1520)/3MP(2048*1536)/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability | 2-ch 12MP/4-ch 4K/6MP/5-ch 5MP/8-ch 4MP/9-ch 3MP/16-ch 1080P/32-ch 720P/64-ch 4CIF |
| Display Split | 1/4/6/8/9/10/16/20/25/36/40/64 |
| E-Zoom | Y |
| Hard Disk | |
| SATA | 16 SATA for 16 HDDs (Hot Swap) |
| eSATA | Y, Only for Backup |
| Capacity | Up to 8TB Capacity for Each HDD |
| NTFS Files System | Y |
| HDD Management | Group and Quota,Customized Recording Days |
| RAID | |
| RAID Mode | JBOD,RAID0,RAID1,RAID5,RAID6,RAID10 (>0℃, Each Raid Group Supports up to 100Mbps Input) |
| Hot Backup Disk | Overall and Raid Hot Backup Disk |
| RAID Management | One-key Configuration, and Support Manual and Auto Rebuild |
| External Interface | |
| Network Interface | 2 RJ-45 10/100/1000Mbps Self-adaptive Ethernet Interfaces |
| Serial Interface | 2 RS-485, 1 RS-232 |
| USB Interface | 1x USB3.0, 2x USB2.0 |
| Alarm In/Out | 16/4 |
| Advance | |
| NAS | NFS Protocol, Support Manual Backup Only |
| Plug and Play | Y, Only for Tiandy Cameras |
| Image Flip | Y, Only for Tiandy Cameras |
| Hot Standby | N+M |
| Corridor Mode | Y, 16:9 to 9:16, Only for Tiandy Cameras |
| Video Analytics(VCA) | Support 160-ch Camera VCA Function,Including Tripwire/Double Tripwire/Perimeter/Object Abandon/Object Lost/Running/Loitering/Parking/Early Warning/Crowd/Face Detection/People Counting/Audio Abnormal Detection/Video Abnormal Detection/On duty Detection |
| Smart Search | Quickly Search Target Videos according to Channel No., Records Type, Records Time, File Type and VCA( Only for Tiandy Cameras ) |
| Trigger Recording | Manual/Timing/Motion Detection/Port Alarm/VCA/Video Occlusion |
| Smart Recording | Set Different Recording Bite Rate for Different Time |
| Alarm Recording | Pre Alarm Default 10s ( 5/10/15/60s Optional) , Post Alarm Default 10s (10/15/30/60/600s Optional ). |
| One Key Control | Intercom, Recording |
| Records Format | SDV, Export MP4 in H.264 Format |
| Records Encryption | Y |
| Records Tag | Y |
| Onvif | Onvif(Profile S) |
| General | |
| Languge | English, Simplified Chinese |
| Power Supply | 100 ~ 240V AC, 50 ~ 60Hz |
| Consumption(without HDD) | ≤100W |
| Working Temperature | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF) |
| Working Humidity | 10 % ~ 90 % |
| Chassis | 19'' Rack Mount 3U Chassis, with 2pcs Ear Boards |
| Dimensions | 132mm×482.6mm×490mm |
| Weight | ≤11Kg (without HDD) |
