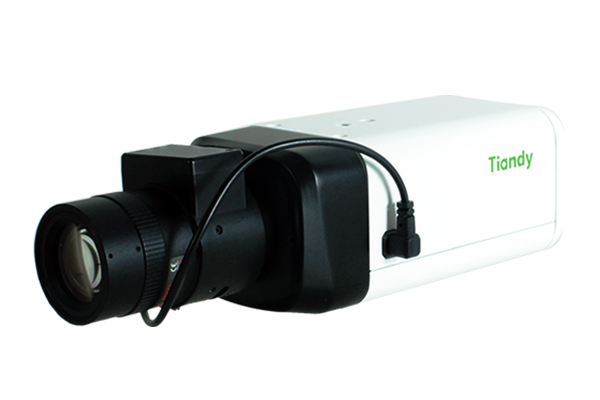

TC-NC27VX
Mã sản phẩm: TC-NC27VX
• Super Starlight Ultra Low Light 0.0008lux
• Up To 1080P, 1920×1080@60fps
• H.265 compression
• Mechanical WDR 140dB
• Support ABF function(Auto Back Focus)
• NIR, WDR, 3D DNR, HLC, Dual-ICR, AWB, AGC, BLC
“• VCA Tripwire/Double Tripwire/Perimeter/Object Abandon/Object
Lost/Running/Loitering/Parking/Crowd/Face Detection/People Counting/Audio Abnormal Detection/Video Abnormal Detection/On duty Detection”
• Interface 2ch 100/1000M RJ45(Support 2 IP Address),Built in mic ，Audio I/O:1/1,Alarm I/O:2/1,2ch Micro SD card slot up to 512G, Micro USB,Reset Button,BNC,USB Storage up to 128G,Power Button,ABF Button
• TVS 6000V, Lightning/Surge Protection: (Power 2000V, RJ45 1000V)
• Operating Conditions -35℃～65℃, 0～95% RHG
• CE, FCC
Giá: Liên hệ
 |
Chi tiết sản phẩm
| Camera | |
| Image Sensor | 1/1.9" CMOS |
| Core Processor | ARM9 Architecture |
| Operating System | Embedded LINUX |
| Signal System | PAL/NTSC |
| Mini. Illumination | Color: 0.0008 Lux @(F1.2, AGC ON) B/W: 0.0001Lux @(F1.2, AGC ON) |
| Shutter Time | 1s~1/100000s |
| Lens Interface Type | C/CS |
| Day& Night | IR Cut Filter With Auto Switch |
| Wide Dynamic Range | 140 dB |
| Digital Noise Reduction | 3D DNR |
| Compression Standard | |
| Video Compression | H.265/H.264H/H.264M/H.264B/MJPEG |
| Video Bit Rate | 32Kbps~16Mbps |
| Audio Compression | G.711A/G.711U/ADPCM/AAC |
| Audio Bit Rate | G711 8KHz, 64kbps |
| ADPCM 8KHz, 32kbps | |
| AAC 48KHz, 96-320kbps | |
| Frame Rate | 50Hz: 50fps (1920 × 1080), 50fps (1280 × 720) |
| 60Hz: 60fps (1920 × 1080), 60fps (1280 × 720) | |
| Triple Stream | Mainstream:1080P(1920*1080) |
| Substream:D1(704*576) | |
| 3rd stream:1080p（1920×1080） | |
| Image Settings | Brightness, Saturation, Contrast,Flip Mode |
| ABF | Y（Auto Adjust ±1mm Back Focus） |
| HLC | Y |
| Smart Defog | Y |
| Corridor Format | Y, Available for 720P and Above |
| EIS | Y |
| ROI | 8 Zones |
| Privacy Mask | 4 Zones |
| Picture Overlay | 200 × 200, BMP 24bit, Zone Configurable |
| OSD | 16×16, 32×32, 24×24, 48×48, 64×64, 96×96 Size Letters Such as Week, Date, Time, Total 5 Regions |
| S/N Ratio | >60dB |
| Compression Standard | |
| Browser | IE8/Firefox24 or above |
| Network Storage | FTP |
| NTP | Y |
| ANR | Y |
| Video Analytics | Tripwire/Double Tripwire/Perimeter/Object Abandon/Object Lost |
| Running/Loitering/Parking/Crowd/Face Detection/People Counting | |
| Audio Abnormal Detection/Video Abnormal Detection/On duty Detection | |
| User Permission | 4 Level/8 users |
| Remote Connection | 7 Users Access at the Same Time |
| System Compatibility | ONVIF (Profile S), SDK |
| Interface | |
| Audio Input | 1-ch |
| Audio Output | 1-ch |
| Ethernet | 2-ch RJ45 100M / 1000M Ethernet Interface(Support 2 IP Address) |
| Alarm Input | 2-ch |
| Alarm Output | 1-ch |
| Video Output | 1Vp-p Composite Output（75Ω/BNC） |
| On-board Storage | Dual MicroSD Card Slots, up to 512GB |
| RS485 | Y |
| RS232 | Y |
| Extension | USBx1 |
| General | |
| Language | English,Simplified Chinese |
| Power Supply | DC 12V±10%/AC24V±10%/PoE |
| Power Consumption | Max. 6W |
| Circuit Protection | TVS 6000V, Lightning/Surge 2000V |
| Dimensions | 170mm×76mm×64mm |
| Weight | 0.88KG (IP Camera Only) |
