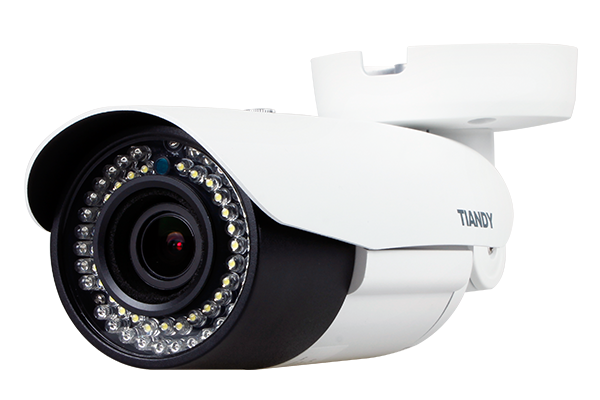

TC-NC23MX
TC-NC23MX
Mã sản phẩm: TC-NC23MX

• H.265 Codec
• Ultra Low Light 0.0008lux
• Up To 1080p@60fps
• Smart IR, IR Range:50m
• NIR, WDR, 3D DNR, HLC, Dual-ICR, AWB, AGC, BLC
• Triple Streams
• Smart VQD(Video Quality Diagnosis)
• 13 kinds of Video Analysis functions
• Audio I/O 1/1, Alarm I/O 2/1, MicroSD Card Slot, up to 128G, Reset Button, USB,RS485
• TVS 6000V, Lightning/Surge 2000V Protection, IP67
• CE, FCC

Giá: Liên hệ

Chi tiết sản phẩm

Camera
Image Sensor 1/1.8" Exmor CMOS
Core Processor ARM9 Architecture
Operating System Embedded Linux
Signal System PAL/NTSC
Min. Illumination Color: 0.0008 Lux @(F1.2, AGC ON)
B/W: 0.0001Lux @(F1.2, AGC ON); 0 Lux with IR
Shutter Time 1s to 1/100,000s
Lens Motorized 3.6-10mm, Angle of View: 99.4°~38.3°
Lens Mount φ14
Auto Iris DC Drive
Day& Night IR Cut Filter with Auto Switch
Wide Dynamic Range 140 dB
Digital Noise Reduction 3D DNR
Focus Auto
Compression Standard
Video Compression H.265/H.264 HP/MP/BP/M-JPEG
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM/AAC
Audio Bit Rate 8Kbps、32Kbps、48Kbps
Max. Image Resolution 1920X1080
Frame Rate PAL: 1080p@50fps, 960p@50fps, 720p@50fps
NTSC: 1080p@60fps, 960p@60fps, 720p@60fps
Triple Stream Mainstream: 1080P(1920*1080)
Substream: D1(704*576)
3rd stream: 720P(1280*720)
Image Settings Brightness, Saturation, Contrast,Flip Mode Adjustable by Client Software or Web Browser
HLC Y
Smart Defog Y
Corridor Format Y, Available for 720P and Above
EIS Y
ROI 4 Zones
Privacy Mask 4 Zones
Picture Overlay 200 × 200, BMP 24bit, Zone Configurable
OSD 16×16, 32×32, 24×24, 48×48, 64×64, 96×96 Size Letters Such as Week, Date, Time, Total 5 Regions
Network
Browser IE8,IE9,IE10,IE11,Chrome30,Firefox24
Network Storage FTP
NTP Y
ANR Y, Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection(Only Support Tiandy ANR NVR)
Video Analytics Tripwire/Double Tripwire/Perimeter/Object Abandon/Object Lost
Running/Loitering/Parking/Crowd/Face Detection/People Counting
Audio Abnormal Detection/Video Abnormal Detection/On duty Detection
Alarm Trigger Motion Detection/IP Conflict/MAC Conflict/Port Alarm/Mask Alarm/Network off-line
Protocols IPv4/IPv6/HTTP/802.1x/FTP/SMTP/UPnP/SNMP/DNS/DDNS/NTP/RTSP/TCP/UDP/DHCP/PPPoE
User Permission 4 Level/8 Users
Remote Connection 4 Users Access at the Same Time
System Compatibility ONVIF (Profile S),P2P, SDK, CGI
Interface
Audio Input 1-ch
Audio Output 1-ch
Communication Interface 1-ch RJ45 10M / 100M Ethernet Interface
Alarm Input 2-ch
Alarm Output 1-ch
Video Output 1-ch Vp-p Composite Output (75 Ω, BNC)
On-board Storage MicroSD Card Slot, up to 128GB
Reset Button Y
RS485 Y
Extension 1x USB
General
Language English,Simplified Chinese
Operating Conditions  -35℃~60℃, 0~95% RHG
Power Supply DC12 V ± 20%, PoE (802.3af)
Power Consumption Max. 2.7W(IR OFF) (ICR Instant Switch 8.4W)
Max. 7W(IR ON)
Circuit Protection TVS 6000V, Lightning/Surge Protection: (Power 2000V, RJ45 1000V)
Impact Protection  IP67
IR Range 50m
IR LEDs 30pcs φ5 Array IR LEDs
White Light 27pcs φ5 LEDs
Dimensions 337mm×107mm×107mm
Weight 1.3KG (IP Camera Only); 1.6KG (with Packing Box)
